Renewable Energy System 6
Ranch Solar Electric System


Click to view
insolation zone map



The amount of power this system will supply in an average day, and in what zone:

Zone 1..........................17772W
Zone 2..........................16291W
Zone 3..........................14810W
Zone 4..........................13329W
Zone 5..........................12440W
Zone 6..........................10367W


EXAMPLE SYSTEM 6:

Qty. Components
26 185 watt solar modules
6 30 #10-2 MC cable assemblies
1 Tilt-up ground mount system
1 Outback FWPV8 combiner boxes with six 15A breakers & lightning protection
1 Outback FM60 MPPT solar charge controllers with breakers
1 Outback Flexware 1000 Power Center*

* Outback FW1000 Power Center includes: Four Outback VFX3648 3600W 48V sine wave inverters, Mate controller, hub-4, X-240 transformer, breakers, AC input/bypass, buss bars all pre-wired into conduit boxes and assembled on a steel mounting plate.

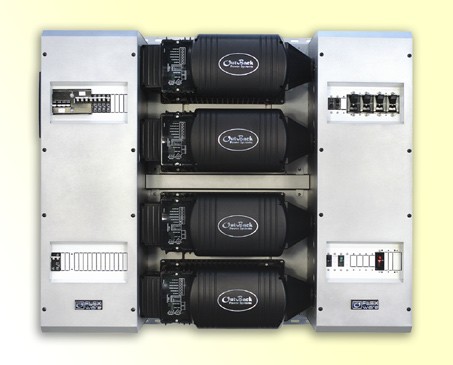

Outback Power Systems FW1000 Power Center

Equipment total = $33,812

Due to the volatility of battery prices please call for current pricing on the following "rest of system" components.

24 24 Surrette 2KS-33PS 2V 1750 amp-hour batteries
4 4 #2/0 AWG 24 battery interconnects
4 4 #2/0 AWG 36 battery interconnects
2 2 sets of #4/0 AWG 10 inverter cables
2 2 Outback BB battery bus bars
4 4 Outback shunt straps

Actual performance will vary depending on your local conditions. Prices can change without notice, please call for an up to date system quote.


This is an example system of how much power it will provide and the cost.  These are merely guidelines to assist you; we design power systems specifically to meet YOUR power needs.  We offer a Solar Electric Design Guide and 150 page Product Catalog for just $10.00 on CD and $15.00 for a paper hard copy --  a boon to your energy library!  These publications are filled with planning & system sizing data, calculating power consumption,  battery care, generator-inverter systems, basic component info on regulators, modules, inverters, batteries; wind generators, RV systems, and battery wiring, among other things.  This will be a good investment for those seriously considering an alternate energy power system.

*****
