Trace Model DR Series
Inverter/Charger:
a low cost, reliable and easy to
use inverter!
|
 |
Note:
In the first half of this year, Xantrex will be launching the 'Trace
Series' to replace the DR inverter line. The Trace series will provide
the same dependable service with some added features, including improved
user interface and power factor correction. Keep an eye at
www.xantrex.com for the coming changes. The present DR series will be
available probably through at least mid this year.
|
|
|
Conveniences:
Enjoy using standard home electrical appliances. Your DR1512/1524,
DR2412/2424. and DR3624 converts 12 or 24 volt battery energy into utility
type power. Hand tools, lights, televisions, microwaves,
computers--almost all household appliances can be powered by your
batteries. This even includes appliances such as refrigerators that
demand high start-up power. |
| We
are proud to offer a full line of products from Xantrax, formerly TRACE Engineering |

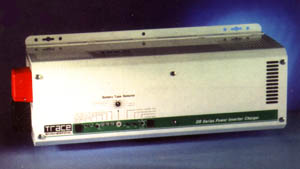

Click on picture
to view |
1)
A 1500, 2400 or 3600 watt continuous output inverter and high power
battery charger included.
2) High efficiency, high surge capacity and low idle current.
3) Low power search mode.
4) Quiet operation.
5) Three-stage charger with battery type selector.
6) Automatic low-battery protection.
7) Fast switching for stand-by power (SPS) installations.
8) Stackable for 120/240 VAC, three wire power. |
|
|
|
|
| "I'll
try to make it short and simple; your inverter is the most reliable and
incredible device I own. After a history of miserable experiences
with other makes, your unit is a pleasure." Frederic M.A.
Levine, Vermont |
Automation:
Plug into utility power or rev-up your generator and the DR model
inverter starts charging your batteries and automatically transfers your
AC input power to your AC electrical system. It charges rapidly
and completely without overcharging and maintains the full charge
indefinitely. The high power synchronous-rectification design
charges batteries in three stages--bulk, absorption then float.
When your AC input power fails, transfer to inverter power is also
automatic, and typically within 16 milliseconds.
Protection: For optimum battery charging, a unique
temperature compensation circuit utilizes an optional remote probe to
automatically adjust charge voltage to battery temperature. In the
inverter mode, if your batteries run seriously low, an adjustable
over-discharge protection circuit automatically turns off the inverter
to protect your batteries. Other design features protect against
undercharging, overload, and accidental connection of an AC source to an
AC outlet.

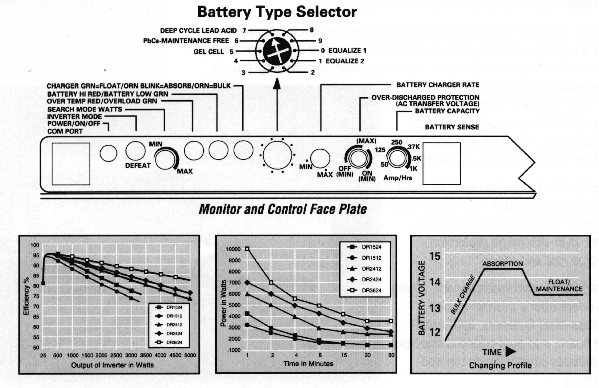

Easy to use: The front panel has easy to understand LEDs
that provide status information, and adjustments which control functions
such as load sensitivity, over-discharge protection, maximum charge
rate, and more.
Rugged: Designed for maximum service, all the DR Series
inverters offer a powder coated chassis, stainless steel fasteners,
conformal coated circuit board, and gold-plated connectors. AC
wiring terminates cleanly inside the wall-mountable chassis.
Versatile: Remote prime power, utility back-up power
systems, industrial applications, standby power systems (SPS/UPS). |
DR
Series Specifications
DR1512
DR2412
DR1524
DR2424
DR3624
Continuous Power at 25°C 1500
VA
2400
VA
1500
VA
2400
VA
3600 VA
Maximum AC Surge Current 28
amps
52
amps
40
amps
72
amps
100 amps
Peak
Efficiency
94%
94%
94%
95%
95%
Nominal DC Input Voltage 10.8 -
15.5V 10.8 -
15.5V 21.6 -
31.0V
21.6 -
31.0V
21.6 - 31.0V
DC Input Current
Search
Mode
0.045
amps
0.045
amps
0.030
amps
0.030
amps
0.030 amps
Full
Output
0.700
amps
0.900
amps
0.350
amps
0.450
amps
0.500 amps
Rated
Power
165
amps
280
amps
80
amps
140
amps
210 amps
Waveform
- - - - - - - modified sinewave
- - - - - - -
Voltage
Regulation
- - - - - -
- +/
-5%
- - - - - - -
Frequency
Regulation
- - - - - -
- +/
-0.04% - - -
- - - -
Power Factor
Allowed
- - - - - -
-
-1 to
1
- - - - - - -
Automatic Load
Sensing
- - - - - - - 5 to 100
watts - - - - - - -
Output Voltage (European & other voltage ranges
available)
120 VAC/60 hz - - - - - - -
Series (stacked) Operation for
120/240VAC Yes, using
two units and stacking interface ribbon (DRI)
Automatic Transfer Relay
30
amps
30
amps
30
amps
30
amps
35 amps
Adjustable Charge
Rate 0
to 70
amps 0
to 120 amps 0 to
35 amps 0 to
70
amps
0 to 70 amps
Number of Charging
Profiles
- - - - - - - 8 and 2 EQ Modes
- - - - - - -
Three Stage
Charging
- - - - - -
-
Yes
- - - - - - -
Battery Temp Comp
Sensor
- - - - - - - Optional -
BTS - - - - - - -
Remote Control/Status
LED
- - - - - - - Optional -
RC4 - - - - - - -
Specified Temperature
Range
- - - - - -
- 0 to
50°C - - - - - -
-
Weight
35
lbs.
45
lbs.
35
lbs.
40
lbs.
45 lbs.
Dimensions:
inches
- - - - - - - 8.5" x 7.25" x
21" - - - - - - -
Centimeters
- - - - - - - 21.6 x 18.4 x 54.6
- - - - - - -
Mounting
- - - - - - - Shelf or
Wall - - - - - - -
|
 |
|
Trace
DR1512 (1500W, 12V) $949
(includes built-in 70A charger)
Trace DR1524 (1500W, 24V) $899 (includes built-in 35A
charger)
Trace DR2412 (2400W, 24V) $1285 (includes built-in 120A
charger)
Trace DR2424 (2400W, 24V) $1285 (includes built-in 70A
charger)
Trace DR3624 (3600W, 24V) $1450 (includes built-in 70A
charger)
Call for availability and freight on these units. |
|
|
|
|
