Iron Edison Batteries
*************************

Iron Edison batteries Iron Edison BatteriesOver a century ago, Thomas Edison found a battery design that he considered to be nearly perfect. Today, Iron Edison is proud to offer an updated version of this incredible design that is specifically manufactured for renewable energy systems. Iron Edison carries a variety of nickel iron batteries: 12 volt, 24 volt, and 48 volt configurations, each configuration with amp-hour capacities of 100 Ah through 1000 Ah.

Comparing a Nickel Iron battery with a lead acid or AGM battery:
Depth of discharge vs. cycle life - Nickel Iron batteries get 11,000 cycles at their recommended 80% depth of discharge. If you cycle the battery once per day, the battery will last over 30 years (11,000/365=30.14), and extending the battery’s life even past the 30-year time frame is possible by refreshing the electrolyte in the battery. Lead acid or AGM batteries typically get 1,500-2,000 cycles at 30% depth of discharge. Cycling this battery once per day would result in a battery life of ~4-5.5 years.

Sizing a Nickel Iron (NiFe) battery as opposed to lead acid or AGM batteries:
Total battery capacity vs. actual battery capacity - Nickel Iron batteries have an 80% recommended depth of discharge, while lead acid or AGM batteries are typically discharged somewhere between 25% and 50%. The battery’s total capacity is determined by simply multiplying the battery’s voltage by its amp-hour capacity. The battery’s actual capacity is influenced by its depth of discharge.
For example, a 12V 300Ah NiFe battery has a total battery capacity of 3.6 kiloWatt-hrs (12*300/1000), and an actual capacity of 2.88 kWhs at 80% depth of discharge (3.6*0.8).
A 12V 300Ah lead acid battery has a total capacity of 3.6 kWhs, and an actual capacity of 1.08 kWhs at 30% depth of discharge.

Nickel Iron:
Optimal charge & discharge rate = C/4
Ex: 48V 100Ah battery should not be expected to provide more than 1,200 Watts of instantaneous power to the loads (100 / 4 = 25 Amps DC; 25 A x 48 V = 1,200 W).
48V 100Ah battery should get 20-25 Amps DC instantaneous for battery charging.
Optimal Depth of Discharge = 80%
Ex: 48V 100Ah battery has 3.84 kWh of usable energy storage capacity (48V x 100Ah x 0.8 = 3,840 Watt-hrs).

Nickel Iron Batteries


12 volt

24 volt

48 volt

Amp Hours List Price Amp Hours List Price Amp Hours List Price
100 $1,100 100 $2,200 100 $4,400
200 $2,200 200 $4,400 200 $8,800
300 $3,300 300 $6,600 300 $13,200
400 $4,400 400 $8,800 400 $17,600
500 $5,500 500 $11,00 500 $22,000
600 $6,600 600 $13,200 600 $26,400
700 $7,700 700 $15,400 700 $30,800
800 $8,800 800 $17,600 800 $35,200
900 $9,900 900 $19,800 900 $39,600
1000 $11,000 1000 $22,000 1000 $44,000

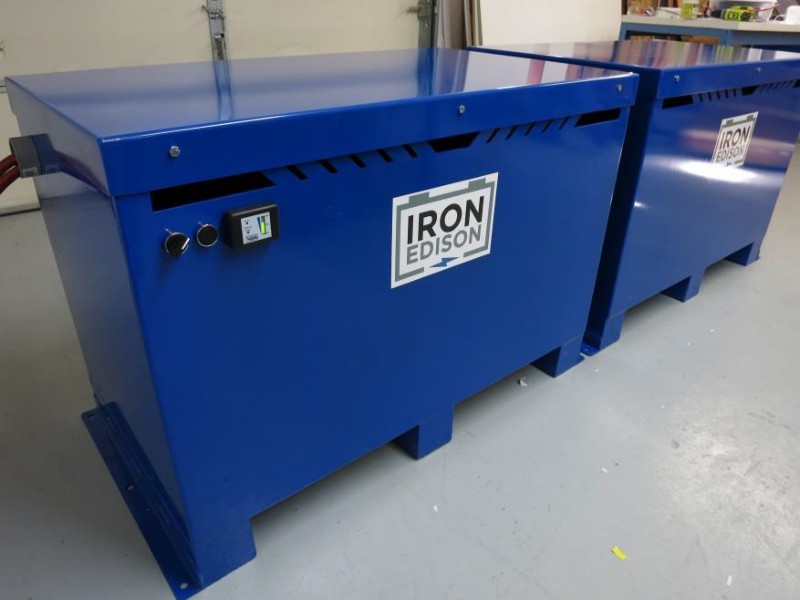

Iron Edison Battery Company’s Lithium Iron Phosphate batteries offer a turnkey solution for energy storage needs in a variety of applications. Iron Edison’s batteries have been successfully used as solar photovoltaic energy storage in off-grid, grid-tie with battery backup, and grid backup applications.

Advantages of Lithium Iron Phosphate batteries: 5000 cycles to 50% depth of discharge; zero maintenance; high energy density; stable battery chemistry versus other lithium batteries. And the iron Edison advantages include a custom design, made in the USA and lifetime technical support!

For supplying a prospective renewable energy battery project, Iron Edison Company proposes the following battery details:

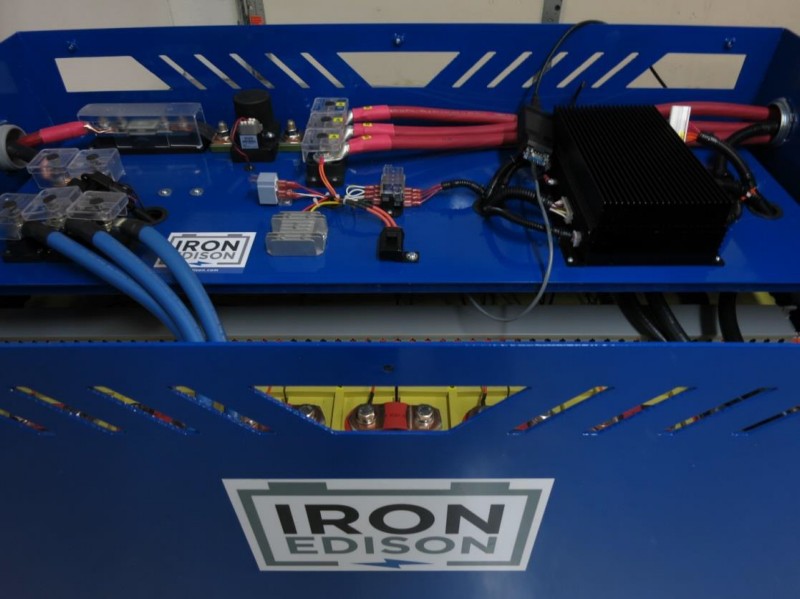

  • Battery type Lithium Iron Phosphate (LiFePO4)
  • Voltage 48V nominal (52V actual)
  • Enclosure Steel metal enclosure
  • Wiring Wired as a 16 cell battery bank
  • Battery Management System (BMS) Battery is wired to a central BMS,
    Programmed to monitor each individual cell in the battery bank (CAN2 communication)
  • State of Charge (SOC) Display Included with battery for visual confirmation
    of energy remaining in the battery bank
  • Contactors GIGAVAC military grade contactors included,
    compliant with NEC 2014 section 690.71(H)
  • On-board fusing Included, compliant with NEC 2014 sec. 690.71(H)

    More data:
    Lithium Iron Phosphate:
    Maximum charge & discharge rates range from 7,800 Watts instantaneous to 104,000 Watts for the various battery sizes
    - 180AH & 360AH = 7.8 kW MAX instantaneous power
    - 540AH & 700AH = 10.4 kW MAX instantaneous power
    - 1000AH & 1400AH = 20.8 kW MAX instantaneous power
    - 2100AH & 2800AH = 31.2 kW MAX instantaneous power
    - 3500AH & 4200AH = 52 kW MAX instantaneous power
    - 4900AH & 5600AH = 104 kW MAX instantaneous power

More Lithium Iron Phosphate Details Here

Lithium Iron Batteries - 48 Volt

Amp Hours List Price Amp Hours List Price
180 $9,920 2,100 $71,700
360 $14,900 2,800 $95,500
540 $21,300 3,500 $136,500
700 $24,600 4,200 $191,000
1,000 $35,800 4,900 $222,000
1,400 $47,500 5,600 $254,000
